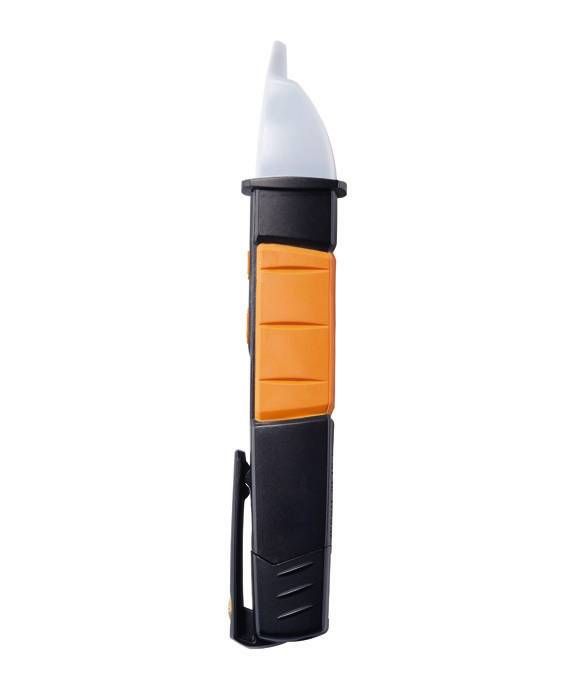

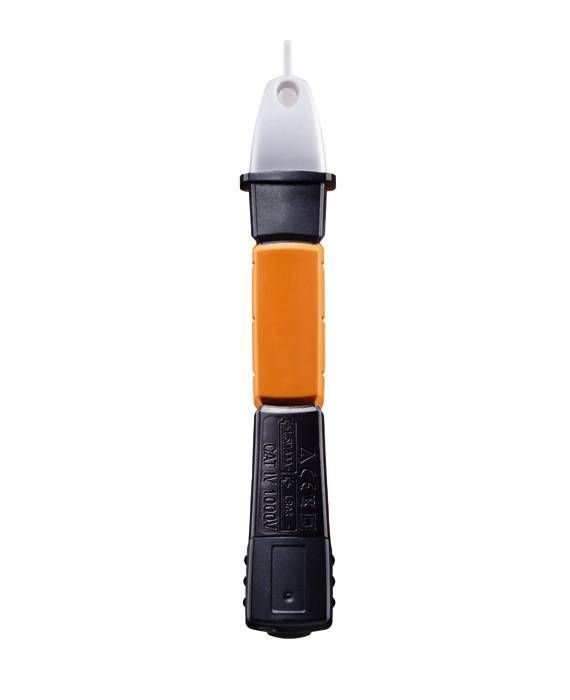

testo 745 - Non-contact voltage tester

Special Price 3360.00

Overview

The testo 745 non-contact voltage tester is ideally suited for fast initial checking of any suspected fault sources. It filters high-frequency interference signals and has a two-stage sensitivity setting.

  • Voltage range up to 1,000 V
  • Waterproof and dustproof according to IP 67
  • Adjustable for phase detection or voltage indication
  • Visual and acoustic signal



Product Description

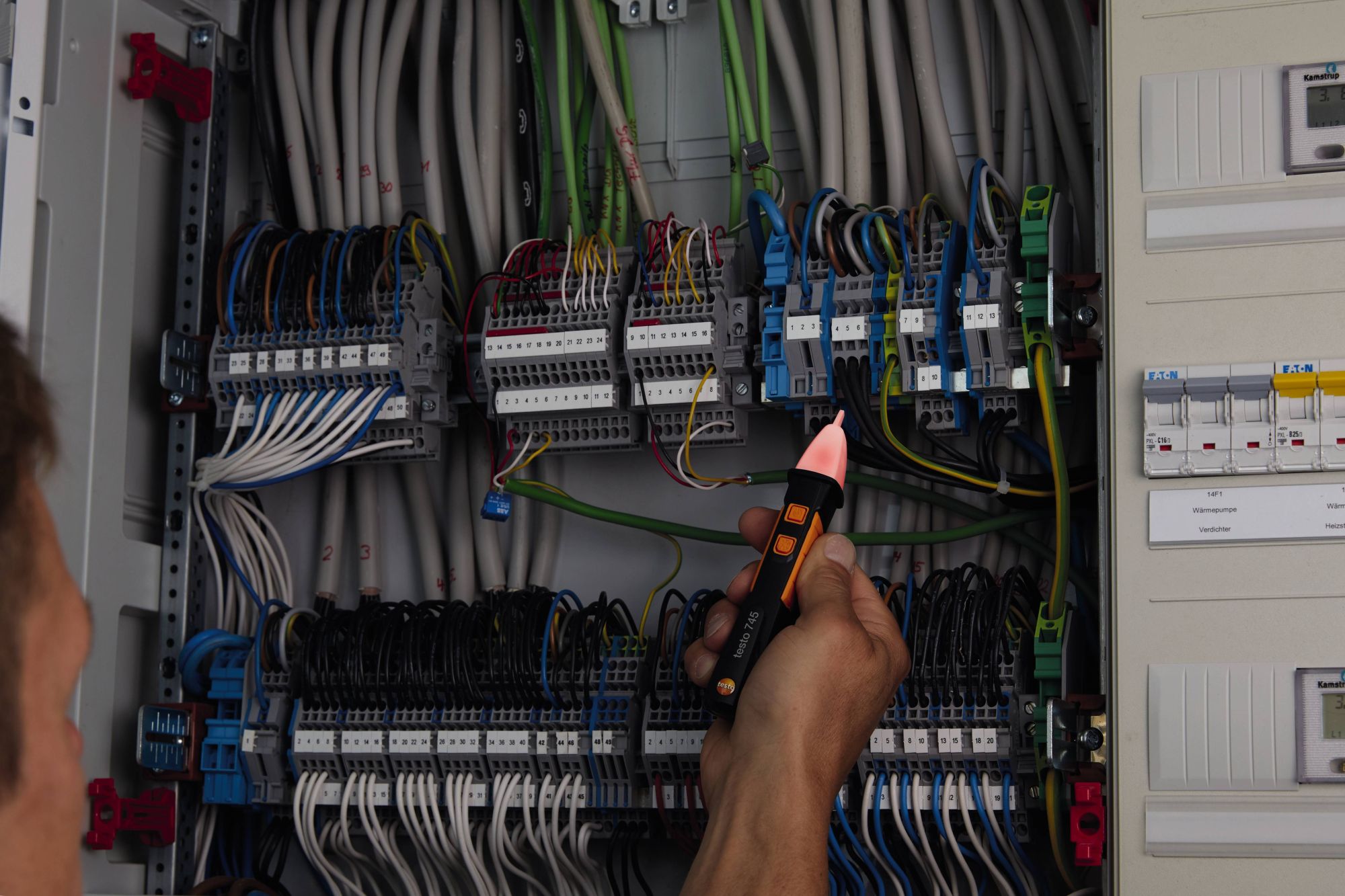

The testo 745 non-contact voltage tester means you can quickly and easily determine voltage or de-energization. In contrast to most other models on the market, it has a filter for high-frequency interference signals which enables reliable voltage indication. If voltage is determined, the instrument gives a warning via a clear visual and acoustic signal.

The sensitivity of the instrument can be set in two stages: stage 1 for phase detection, stage 2 for voltage indication. The integrated torch also enables you to work safely in dark surroundings. In addition, the testo 745 voltage tester is both waterproof and dustproof according to IP 67.




Delivery Scope

testo 745 non-contact voltage tester, including batteries.

General technical data
Dimensions 155 x 25 x 23 mm
Operating temperature -10 to +50 °C
Protection class IP67
Warranty 2 years
Storage temperature -15 to +60 °C
Weight 63 g
Overvoltage Category CAT IV 600V; CAT III 1000V
Authorizations CSA; CE
AC voltage
Measuring range / Resolution 12 to 1000 V / 50 to 1000 (sensitivity 1), 1000 / 12 V (sensitivity 2)
Instrument Measurement Functions
Measuring point illumination yes
